DRO-550 Cables Construction

Edge Finder/Tachometer Cable

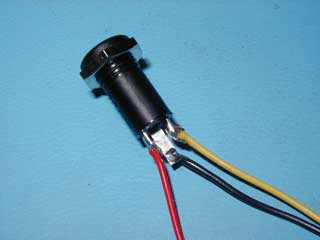

The edge finder and tachometer connectors are 3.5mm (1/8") stereo plugs.  The tip is 5V, the middle ring is the auxiliary signal, and the inner ring is ground as shown in the following picture.  The tip is 5V to ensure that the auxiliary device is not energized until the plug is fully inserted.
