RS-232 Cable

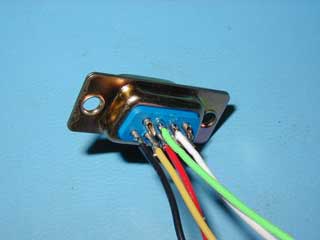

The RS-232 interface is used for both programming the DRO-550 and for interfacing it to a PC. The cable is wired as indicated in the table.  The connector is a 9 pin female d-sub connector.
